This article explains how custom-engineered foam interiors are designed to protect high-value equipment against shock, vibration, and transport risks. It outlines the material selection, design, and testing process, showing how optimized foam solutions reduce damage, prevent DOA, and lower total cost of ownership.
Summary of this article
Foam interiors are a crucial part of industrial packaging solutions when it comes to protecting fragile and valuable equipment. A well-designed foam interior not only provides physical protection, but can also yield significant cost savings by preventing transport damage. Designing these interiors is a precise process that takes into account the properties of the product, transport conditions and the specific risks that need to be mitigated. From shock absorption to vibration damping, foam interiors are custom-made to provide optimal protection in every situation.
Foam is ideal for protective interiors because of its unique combination of shock-absorbing, vibration-reducing and insulating properties. The cell structure of foam allows it to absorb and distribute energy, making it perfect for protecting fragile equipment during transport and storage.
The key properties that make foam so suitable for protective applications are:
There are different types of foam available, each with specific properties that make them suitable for different applications:
The choice of a particular type of foam depends on the specific protection requirements of the product, the transport conditions and the expected use of the packaging.
The design process for a foam interior is a methodical approach in which we start with a thorough analysis of the product to be protected and end with a tailor-made protection solution. This process involves several crucial steps that together ensure an optimal result.
The complete design process is as follows:
Product analysis and risk assessment – First, we assess how fragile the product is, which parts are particularly vulnerable and what environmental factors it will be exposed to. We also analyse how the product will be transported and what the risks and challenges are along the way.
Identification of critical points – We determine which parts of the product are most vulnerable to shocks, vibrations or other influences. These can be protruding parts, sensitive electronics or precision components that must remain precisely aligned.
Material selection – Based on the product analysis, we select the most suitable type of foam, density and thickness. Different parts of the interior may require different materials, depending on the specific protection requirements.3D modelling and design – Using CAD software, we create a digital model of the foam interior. This model takes into account the exact dimensions of the product and packaging, ensuring a perfect fit.Prototyping and testing – We create a prototype of the designed foam interior and test it with the actual product. We examine the fit, ease of use and level of protection.Drop tests and simulations – To ensure that the foam interior provides sufficient protection, we carry out drop tests and other simulations that mimic transport conditions. This can be done according to specific standards, such as for defence applications or medical equipment.Optimisation and adjustment – Based on the test results, we optimise the design where necessary. This may involve adjusting the density, adding extra reinforcements or refining the fit.Production preparation – The final design is prepared for production, taking into account production methods such as CNC milling, waterjet cutting or punching, depending on the complexity and precision required.
This design process is not linear but iterative. If testing reveals that certain aspects need to be improved, we go back to earlier steps in the process. The end result is a foam interior that is perfectly tailored to the specific requirements of the product and the transport conditions.
Dead On Arrival (DOA) prevention is a crucial aspect of foam interior design. DOA refers to products that arrive damaged at the end user and are immediately unusable. A well-designed foam interior is essential to prevent this scenario and plays a key role in ensuring product quality during transport.
The impact of DOA incidents goes far beyond the direct cost of the damaged product:
When designing foam interiors for DOA prevention, we apply specific strategies:
Critical zone identification – We identify the most vulnerable parts of a product and design extra protection for these zones. These can be connectors, displays or precision parts, for example.
Multiple layers of protection – For high-value or highly sensitive equipment, we implement several layers of protection that complement each other. This can consist of a combination of different types of foam with specific properties.
Resonance analysis – We analyse the natural frequency of the product to select foam that specifically dampens vibrations in that frequency range, preventing resonance damage.
Fixation and immobilisation – The foam interior is designed so that the product is completely fixed and cannot move within the packaging, even under extreme handling conditions.
Climate protection – In addition to mechanical protection, the right foam also offers protection against moisture, temperature fluctuations and, in some cases, electrostatic discharge.
By placing DOA prevention at the heart of the foam interior design process, we ensure that products reach their destination safely, even under the most challenging transport conditions. This is particularly important for sectors such as defence, medical technology and emergency services, where equipment must be immediately operational without defects.
At Faes, we do not see a foam interior as loose filling, but as part of the complete packaging solution. The interior should not only fit, but also protect, create overview and make use on location easier.
That is why we start with an intake, during which our packaging experts map out the application, vulnerability, transport method and conditions of use. Together with our engineers, we then determine whether a standard solution is sufficient or whether a custom solution is needed.

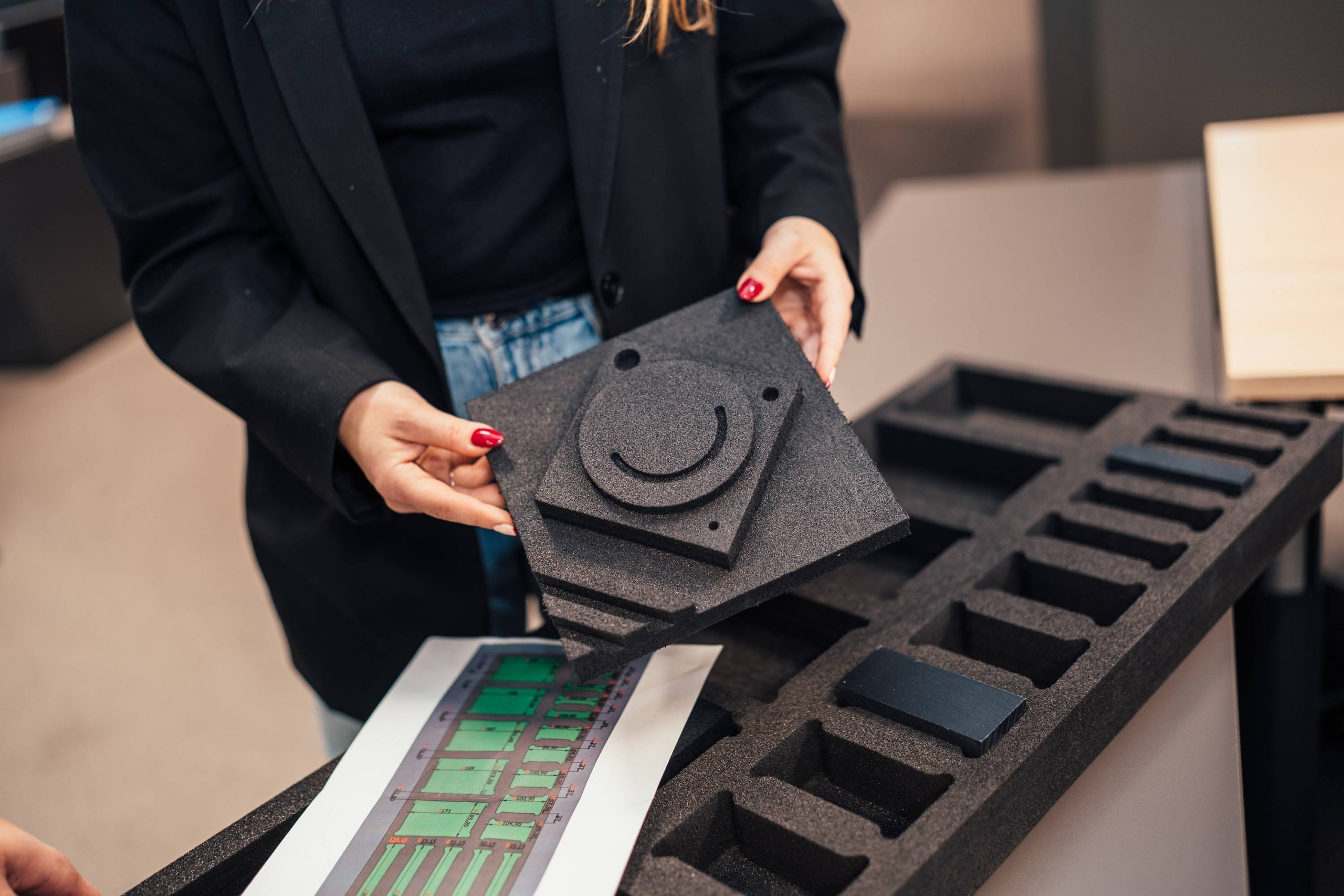

In the concept and design phase, we translate those requirements into a practical solution. We look at material choice, layer structure, cut-outs, grip space, accessories and the way components are placed back into the case. Especially for technical, valuable or mission-critical products, this helps prevent damage, confusion and incorrect use.
Because Faes combines advice, engineering, packaging development, production and assembly, we can move quickly from idea to prototype and production. Through a digital approval process, everyone involved can easily provide feedback and give approval.
What we often see with customers is that standard foam later turns out to have limitations. Components are not positioned logically, vulnerable parts are not supported sufficiently or the packaging does not fit daily use well enough. By looking at the complete use scenario from the start, we prevent these issues already in the design phase.
Even after delivery, we remain involved in modifications, replacement or further optimisation. This means Faes does not deliver a loose foam insert, but a robust packaging solution that continues to match real-world use.
A well-designed foam interior has a significant positive impact on the Total Cost of Ownership (TCO) of both the product and the packaging solution itself. The initial investment in high-quality foam may be higher than for standard solutions, but the long-term benefits far outweigh these costs.
The main ways in which foam interiors reduce TCO are:
Reduction of transport damage – The primary function of foam interiors is to prevent damage. Every instance of damage prevented not only saves the direct costs of product replacement, but also the indirect costs such as handling, administration and customer service.
Reduction in warranty claims – Products that arrive undamaged result in fewer warranty claims. For a company that ships thousands of products annually, a reduction of just a few percent in warranty claims can save tens of thousands of pounds.
Extended product life – Even when damage is not immediately visible, inadequate protection can lead to micro-damage that shortens the life of products. Good foam interiors prevent this insidious degradation.
Reusability of packaging – High-quality foam interiors retain their protective properties over many cycles of use, making them ideal for returnable packaging or circular packaging concepts.
Optimisation of packaging volume – Custom-made foam interiors make it possible to ship products in more compact packaging, reducing transport costs and saving warehouse space.
Let’s put these cost savings into perspective with an example:
Suppose a company ships 1,000 high-end devices annually with an average value of £5,000 each. With standard packaging, the company experiences a DOA rate of 3%, resulting in 30 damaged devices per year. The total damage then amounts to £150,000, plus approximately £30,000 in indirect handling costs.
By investing in custom-made foam interiors (say £50 extra per package, so £50,000 in total), the DOA rate can be reduced to 0.5%. This means only 5 damaged devices per year, with total damage of £25,000 plus £5,000 in indirect costs.
The net savings in the first year would then be: (£150,000 + £30,000) – (£25,000 + £5,000 + £50,000) = £100,000
In subsequent years, the savings would be even greater, as the investment in the design of the foam interiors would already have been made.
In addition to these quantifiable cost savings, there are also qualitative benefits:
For sectors such as defence, medical technology and emergency services, where equipment must be immediately operational in critical situations, the value of reliable protection is even greater than the pure cost savings. Here, the difference between well-protected and poorly protected equipment can literally be life-saving.
At Faes, we understand that every product, every application and every sector presents unique challenges. That is why we develop foam interiors that are perfectly tailored to your specific needs. Whether it concerns fragile medical equipment, sensitive defence technology or costly measuring instruments, we ensure that your products arrive safely, every time.
The choice depends on the weight of your product, its fragility and the transport conditions. High-density PU foam is ideal for heavy, fragile products. Anti-static foam is more suitable for lighter electronic components. For products that need to be protected from moisture, choose PE foam. Always have a risk analysis carried out by a packaging specialist to determine the optimal foam solution for your specific situation.
The most common mistakes are: not taking all transport risks into account, using foam layers that are too thin to save costs, choosing the wrong density for the product weight, insufficient fixation allowing the product to shift, and ignoring environmental factors such as temperature and humidity. It is also often forgotten to test the foam interior under realistic conditions before it goes into production.
Evaluate your current foam interiors by keeping track of transport damage statistics, collecting customer feedback on the condition of products received, and conducting regular visual inspections of used packaging. Look for signs of compression or degradation of the foam.
Also consider conducting professional drop tests or transport simulation tests to objectively measure protective capacity. Compare your DOA figures with industry standards.
Absolutely, foam interiors work excellently in combination with other protection methods. For optimal protection, you can combine foam with air buffering, anti-static bags for electronic components, moisture-absorbing materials, or temperature-regulating packaging. For highly valuable or critical products, a multi-layer protection strategy is often used, with foam providing primary shock absorption and additional materials addressing specific risks.
